Introduction
Ball hydro turbine safety valves represent the optimal engineering solution for the rapid and highly reliable flow interception in modern hydropower plants. Specifically engineered to withstand extreme high-pressure conditions, they guarantee a secure emergency closure to continuously protect critical turbines and penstocks. Their full-bore structural architecture aggressively minimizes hydraulic head losses, ensuring maximum operational efficiency and yield for the entire facility. Further configurations and precise dimensional charts are readily available for review within the downloadable catalog.
Key Features
Rapid and secure automatic emergency closure, bubble-tight mechanical sealing under extreme high pressure, extraordinarily low head loss when fully open, heavy-duty structural design tailored for severe hydropower applications, excellent resistance to continuous wear, highly reliable actuation even under critical emergency conditions

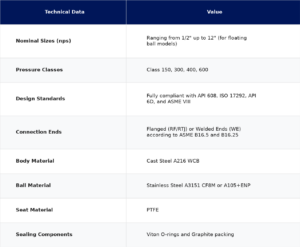

Technical Data Table
Applications and Benefits
- Water distribution networks and aqueducts: Extreme operational reliability featuring rapid flow shut-off and zero leakage;
- Complex industrial facilities: Complete safety ensured by built-in anti-static mechanisms and fire-safe backups that protect the infrastructure against fires and accidental overpressures;
- Engineering flexibility: Plentiful construction options, such as the extended stem, allow the valve to adapt perfectly to underground applications or insulated pipelines
Why Choose Our Products
Di Nicola manufactures safety turbine ball valves in carbon steel ASTM 216 WCB / N + GP 240GH, in fabricated EN S275J0 steel , in ASTM CF8 and CF8M cast stainless steel and fabricated Stainless steel for over thirty years with dimensions between 50 and 1600 mm and nominal pressures from 25 bar to 100 bar and from ANSI Class 150 to Class 600. Valves guard turbine ball Di Nicola answer to major international standards such as EN 593, EN ISO 1074-1, EN ISO 1074-2, DIN 3202, BS 5150, ISO 5752, ASME B16.10. With marked according to EN ISO 19 and flanges according to EN 1092-2, ISO 2531, BS4504 test according to EN 12266-1. Di Nicola safety turbine ball valves are compliant to European machines are therefore equipped with CE certification and manuals of use and maintenance. The special hydraulic actuator developed since the 80’s “has been standardized and has a number of accessories developed at the request of the major turbine manufacturers and outside Europe in order to provide a unique and easy to install product. The major competitors in the world market including Germany, seeking to emulate the ‘incredible performance and simplicity contained in the actuator hydraulic Di Nicola.
Contact our sales department today to request a customized quotation and select the ideal cast steel ball valve tailored specifically to your facility’s requirements. We also encourage you to download the official technical catalog to review in detail all weights, face-to-face dimensions (L-RF, L-RTJ, L-WE), and bespoke engineering options.
