Introduction
The professional range of steel and stainless steel sluice gates manufactured by Di Nicola offers high-integrity isolation and precision flow control across wall-mounted channels, basins, and fluid adduction networks. Available in light-duty designs managing shield dimensions up to 1000×1000 mm as well as heavy-duty structural executions from 1200×1200 mm up to 3000×3000 mm, this premium equipment ensures supreme hydraulic tightness and an extended operational lifespan free of mechanical wear. The precise engineering layout coordinates seamless slide motion with exceptional structural shell resistance against heavy hydrostatic pressure heads, making them the ultimate selection for municipal aqueducts , wastewater treatment plants , irrigation channels , and harsh industrial processing installations.
Key Features
Compact wall-mounted design executing in square or rectangular configurations to perfectly match any channel or discharge opening geometry , rising stem operating assembly providing immediate on-site visual confirmation of the open or closed travel status , high-precision perimetric tight sealing incorporating paired bronze and polyethylene guides coupled with an anti-sand neoprene profile gasket that efficiently blocks sediment and debris collection inside the frame guide slot , robust structural plate reinforcement elements calculated to safely support target hydrostatic pressure loads without any deformation , extension spindles and torque connection sleeves sustained via intermediate wall-guided support brackets to preserve long-range mechanical alignment and drive linkage stability , comprehensive actuation compatibility allowing easy field swapping between manual, electric, or linear fluid-driven systems.

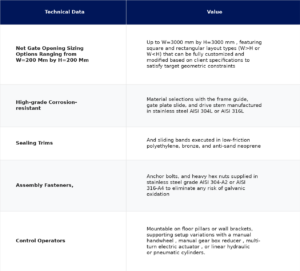

Technical Data Table
Applications and Benefits
- Municipal and industrial wastewater treatment networks: Secures safe containment and high-reliability isolation along influent channels and sludge treatment loops;
- Irrigation grids and agricultural reclamation channels: Delivers precise water depth holding and distribution control with zero process media loss;
- Dams, barrages, and hydroelectric power infrastructure: Acts as dependable adjustment gates or auxiliary isolation block elements within intake chambers and tailrace channels;
- Excellent site integration versatility: Light and heavy customizable footprints combined with guided accessories such as protection tubes or wall support brackets allow for seamless adaptation onto pre-existing concrete civil works.
Why Choose Our Products
Di Nicola design and manufactures gates wall mounted , channel mounted , on –sitting seal, off –sitting seal , with two-way sealing , type spillway and bottom outlet armed , with manual, electric , hydraulic and gravity in steel construction EN S275J0 , stainless steel AISI 304 , AISI 316 , aluminum , Duplex and Super Duplex high in nickel , with sizes ranging from 300 to 30,000 mm and hydraulic loads from 6 meters to 160 meters . The gates Di Nicola are tested in accordance with Standard AWWA C561-04 and DIN 19569-04 Class 5 . The company Di Nicola produces non-standard at the request of customers .
Review the complete technical layouts, construction sections, and definitive sizing parameters of these wall-mounted sluice gates inside the catalogue below Contact our engineering division today to develop an engineered solution tailored to your line requirements or to obtain a customized quote.
